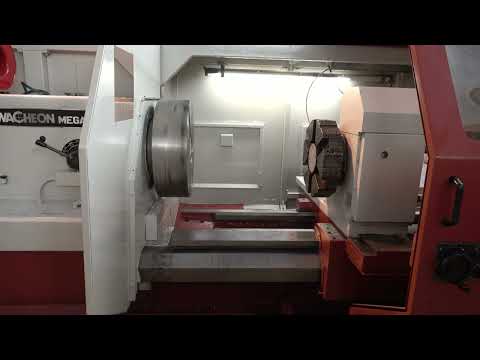

38.6/48.4" x 118" HWACHEON "MEGA-95/3000" CNC HEAVY-DUTY GAP-TYPE FLATBED LATHE w/FANUC 21-T CNC CONTROL - 6” HOLE THRU SPINDLE - 24" 3-JAW CHUCK - 12-POSITION TOOL HOLDING TURRET

38.5/48.4" x 118" HWACHEON "MEGA-95/3000 HEAVY-DUTY GAP-TYPE

FLATBED CNC LATHE

Serial No 300061, Model MEGA-95/3000

EQUIPPED WITH:

Fanuc 21-T CNC Control w/CRT (Pendant Mounted)

24" 3-Jaw Chuck - A2-15 Spindle Nose

12-Position Hydraulic Tool Holding Turret On Cross-Slide

A2-15 Spindle Nose

Full Lenth Coolant System (Tank & Pump)

Turbo Systems Chip Conveyor (Full Length)

Heavy-Duty Tailstock w/One Shot Lubrication

CATALOG SPECIFICATIONS:

Hole thru Spindle 6"

Swing Over Bed, Maximum 38.5"

Swing Thru Gap 48.4"

Swing Over Cross Slide 26.2"

Distance Between Centers 118"

Cross Travel (X-Axis) 19.09"

Longitudinal Travel (Z-Axis) 118"

Spindle Speeds, Range 40 to 1000 RPM

Rapid Traverse Rate 236 IPM

Tailstock Quill Travel 10.2"

Motor Horsepower 30 HP

Overall Dimensions, L x W 236" x 99"

Overall Height 85"

Weight Approximately 22000 LBS

F.O.B. OUR WAREHOUSE
