144" (12') JETLINE "LWC-144" "RAISED-BASE" COMBINATION INTERNAL EXTERNAL SEAM WELDER w/MILLER WELDING PACKAGE

144" (12') JETLINE "LWC-144" "RAISED-BASE" COMBINATION INTERNAL EXTERNAL SEAM WELDER w/MILLER WELDING PACKAGE

$54,500 (USD)

orCall +1 513-771-1952

Description

144" JETLINE COMBINATION INTERNAL EXTERNAL

LONGITUDINAL SEAM WELDER

Serial No 962029, Model LWC-144,


EQUIPPED WITH:

Raised Base

Jetline "SWC-3A" Carriage w/Standard

Jetline Carriage Control (S/N 962029)

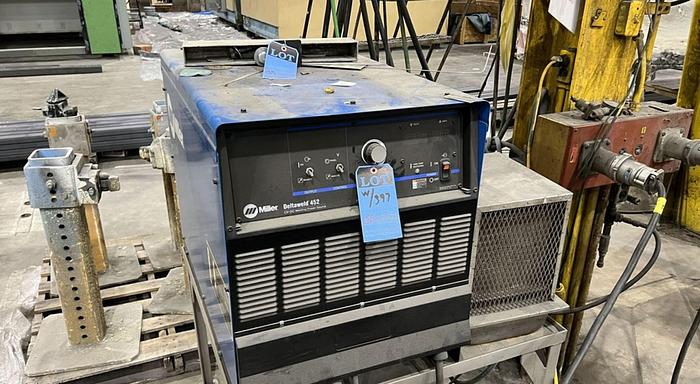

Welding Package: 450 AMP Miller "DELTA 452" Welder,

Miller "70" Series Torch Control, Miller Head & Torch



CATALOG SPECIFICATIONS:

Welding Length Capacity 144" 3660 MM

Part Diameter, Internal Maximum 55" 2.5 M

Part Diameter, External Maximum

Part Diameter, External Minimum 12.25" 311 MM

Thickness Capacity, Range .020" to .375"

Thickness Capacity, Range .5 to 10 MM

Carriage Speed, Range 3 to 135 IPM

Carriage Speed, Range 75 to 3450 MMPM

Overall Length 200" 5080 MM

Overall Width 42" 1070 MM

Overall Height 100" 1940 MM

Weight, Approximately 13000 LBS 5900 KG


NOTE: The Combination Style Seam Welder Is Designed

For The Welding Of Cylindrical Tanks And Vessels. Parts

Can Be Loaded Either Under (For Smaller Diameters) Or

Over The Tabletop. (For Larger Diameters) The Raised

Base Allows For Larger Diameters To Be Welded Than

Standard.


F.O.B. OUR WAREHOUSE


Specifications

ManufacturerJETLINE
ModelLWC-144
ConditionUsed
Serial Number962029
Stock Number30174
