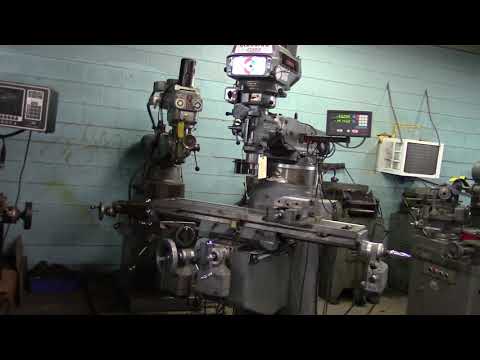

3 HP CLAUSING KONDIA “FV-1” VERTICAL MILL w/POWER LONGITUDINAL CROSS & VERTICAL FEEDS - NEWELL DIGITAL READOUTS - POWER DRAW BAR - KURT VISE

FV-1 CLAUSING/KONDIA VERTICAL MILL w/DIGITAL READOUTS

Serial No AP-452, Model FV-1,

EQUIPPED WITH:

Newall Topax Digital Readouts

Power Longitudinal Table Feed (Optional)

Power Cross Table Feed (Optional)

Power Vertical Table Feed (Optional)

Power Down-Feed to Quill

Power Draw Bar - Automatic Lube System

Kurt Manual Vise

CATALOG SPECIFICATIONS:

Table Dimensions (Overall), W x L 9" x 48"

Table Longitudinal Travel (X-Axis) 32.5"

Saddle Cross Travel (Y-Axis) 15"

Knee Vertical Travel (Z-Axis) 16.5"

Spindle Taper #R-8

Spindle-Head Swivel, Degrees 90-DEGREES

Spindle-Head Tilt, Degrees 45-DEGREES

Spindle Speeds, Range 60 to 4000 RPM

Spindle Motor, Horsepower 3 HP

Weight, Approximately 3100 LBS

F.O.B. OUR WAREHOUSE
