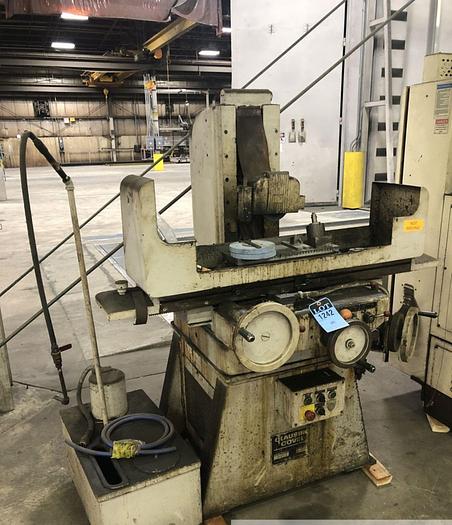

6" X 18" CLAUSING/COVEL "4011" HYDRAULIC AUTOMATIC HORIZONTAL SPINDLE SURFACE GRINDER

6" X 18" CLAUSING/COVEL AUTOMATIC HYDRAULIC

 HORIZONTAL-SPINDLE SURFACE GRINDER

Serial No 10H5879, Model 4011,

EQUIPPED WITH:

Incremental Power Down Feed Of Grinding Head

Incremental Cross Feed Of Table

6" x 18" Permanent Magnetic Chuck

Hydraulic Longitudinal Table Feeds

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:

Table Dimensions, Overall 9.875" x 44.25"

Table Working Surface, W x L 6" x 18"

Grinding Width Capacity, Maximum 6"

Grinding Length Capacity, Maximum 18"

Grinding Wheel Diameter 7"

Grinding Wheel Width .5"

Grinding Wheel Hole 1.25"

Height Under 7" Grinding Wheel 16.5"

Table Longitudinal Travel 20"

Table Cross Travel 7"

Table Longitudinal Feeds, Range 5 to 70 FPM

Table Cross In-Feeds, Range .005 to .250 IPR

Electrical System 230-460/3/60

Floor Space Required, L x D 6'7" x 4'2"

Overall Height 5'8"

Weight, Approximately 2350 LBS

F.O.B. OUR WAREHOUSE
