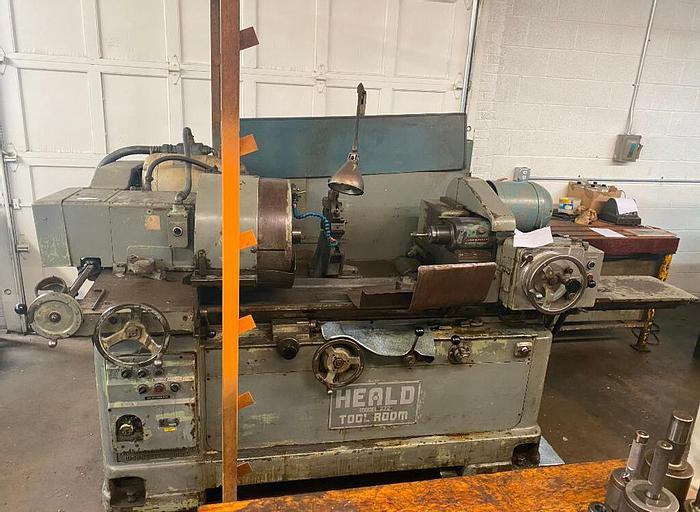

272 HEALD "TOOLROOM" INTERNAL GRINDER

#272 HEALD "TOOLROOM" INTERNAL GRINDER

Serial No. 34298, Model 272, Series "TOOLROOM"

EQUIPPED WITH:

Heald "Red Head" Grinding Spindle

Swing Down Wheel Dresser

12" 4-Jaw Chuck w/Jaws

Variable Speed Hydraulic Workhead Motor

Chuck Guard - Wheel Guard

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:

Swing Over Table, Maximum 26"

Swing Inside Coolant Splash Guards 20"

Hole Diameter, Maximum 21.75"

Bore Length Ground, Maximum 14"

Table Longitudinal Travel 30.25

Workhead Spindle Flange, Diameter 9.625"

Grinding Angle, Maximum Included 60-DEGREES

Workhead Spindle Speeds, Range 133 to 400 RPM

Grinding Table Speeds, Infinite 0 to 15 FPM

Power Rapid Table Traverse 35 FPM

Wheelhead Spindle Motor, Horsepower 5 HP

Hydraulic Motor, Horsepower 1.5 HP

Floor Space Required, W x D 7'3" x 10'3"

Weight, Approximately 8700 LBS

F.O.B. OUR WAREHOUSE
