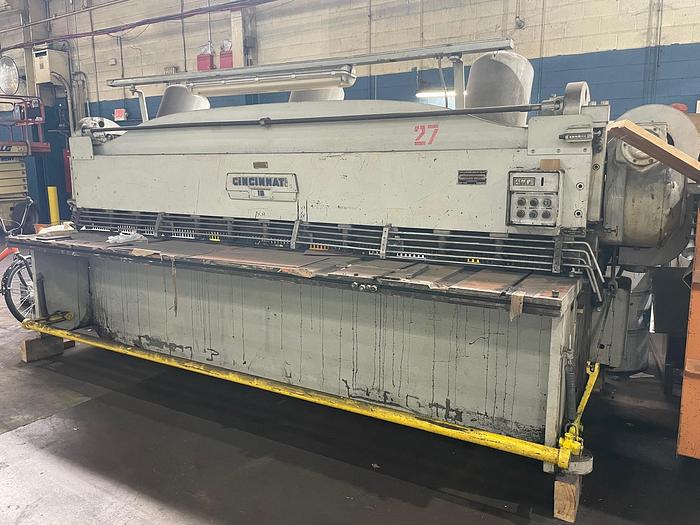

12' x 1/4" CINCINNATI-INC "1812" MECHANICAL POWER SQUARING SHEAR

12' x 1/4" CINCINNATI-INC MECHANICAL POWER

 SQUARING SHEAR

Serial No 35624, Model 1812,

EQUIPPED WITH:

Power Back Gauge (Front Operated)

7' Squaring Arm - 1 Front Support

Hydraulic Hold-Downs

Full Length Foot Treadle

CATALOG SPECIFICATIONS:

Shearing Capacity, Nominal 12' x 1/4"

Shearing Capacity, Mild Steel 12' x 1/4"

Length Between Housings 12'3"

Length of Knives 12'4"

Rake, Taper Per Foot 5/16"

Ram Adjustment 11/16"

Hold-Downs to Knife Edge 5/8"

Total Hold-Down Pressure 10 TON

Strokes Per Minute 60 SPM

Main Motor, Horsepower 10 HP

Overall Dimensions, L x D 15'2" x 6'

Overall Height 6'3"

Weight, Approximately 22000 LBS

F.O.B. OUR WAREHOUSE
