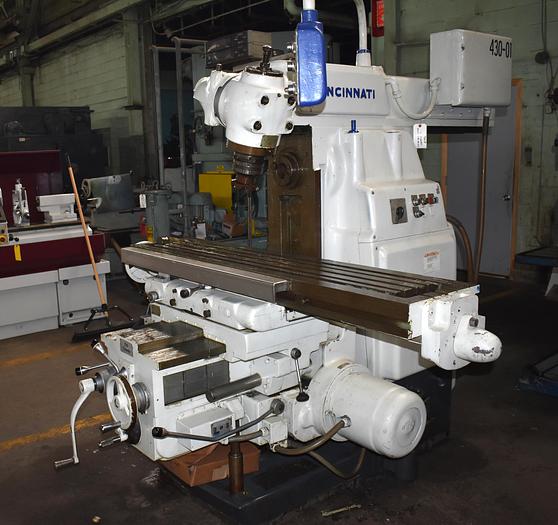

310-14 CINCINNATI-MILACRON "CINEDO" UNIVERSAL HORIZONTAL MILL w/I.O.S. & DIGITAL READOUTS

#310-14 CINCINNATI-MILACRON "CINEDO" UNIVERSAL HORIZONTAL

MILL W/INDEPENDANT OVERHEAD VERTICAL MILLING HEAD

Serial No. 11A23U57E-7, Model Cinedo 310-14

EQUIPPED WITH:

Sony "LU10A" 2-Axis Digital Readouts

Independant Overhead Spindle w/Pendant Controls

Motor On Knee

Front & Rear Controls

CATALOG SPECIFICATION:

Table Dimensions (Overall), W x L 14" x 62-1/2"

Table Working Surface, W x L 14" x 62-1/2"

Longitudinal Table Travel (X-Axis) 34"

Cross Saddle Travel (Z-Axis) 12"

Vertical Knee Travel (Y-Axis) 19"

Table Swivels Degrees, R to L 46 DEGREES

Spindle-Center to Table-Top, Minimum 0"

Spindle-Center to Table-Top, Maximum 19"

Spindle Taper #50 NSTD

(16) Spindle Speeds, Range 18 to 1800 RPM

Vertical Head Speeds, Range 100 to 1530 RPM

(16) Longitudinal and Cross Feeds 1/4 to 30 IPM

(16) Vertical Feeds, Range 1/8 to 15 IPM

Power Rapid Traverse, Long & Cross 150 IPM

Power Rapid Traverse, Vertical 75 IPM

Spindle Motor, Horsepower 7.5 HP

Feed Motor, Horsepower 3 HP

I.O.S. Motor (Vertical Spindle) 3 HP/1715 RPM

Electrical System 220-440/3/60

Floor Space Required, W x D 9'8" x 8'5"

Weight, Approximately 7400 LBS

F.O.B. OUR WAREHOUSE
