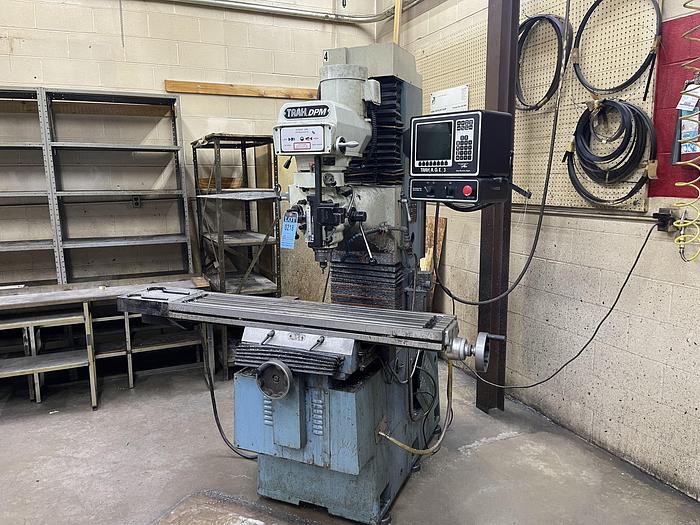

SOUTHWEST INDUSTRIES (SWI) "TRAK DPM" 3-AXIS CNC BED-TYPE VERTICAL MILL

SOUTHWESTERN INDUSTRIES (SWI) "TRAK DPM"

 3-AXIS CNC BED-TYPE VERTICAL MILL W/TRAK A.G.E. 3

Serial No 97-3057, Updated 2017, Model TRAK DPM

EQUIPPED WITH:

SWI TRAK A.G.E. 3 CNC Control (Updated 2017)

3 HP Head

Hardened And Ground Ways

Quick Change Tool Holder

Auto Lube System

CATALOG SPECIFICATIONS:

Table Dimensions (Overall), W x L 10" x 50"

Table Working Surface, W x L 10" x 50"

Table Weight Capacity, Maximum 1320 LBS

Table Longitudinal Travel (X-Axis) 31"

Saddle Cross Travel (Y-Axis) 17"

Vertical Travel (Z-Axis) 23.5"

Quill Vertical Travel 5"

Spindle To Column Face   19"

Spindle to Table, Maximum   23.5"

Spindle Taper #NMTB40

Quill Diameter   3.9375"

Spindle Speeds, Range 70 to 4200 RPM

Rapid Traverse Rate, X, Y, Z-Axis   150 IPM

Spindle Motor, Horsepower Rating 3 HP

Weight Approximately 4100 LBS

F.O.B. OUR WAREHOUSE
