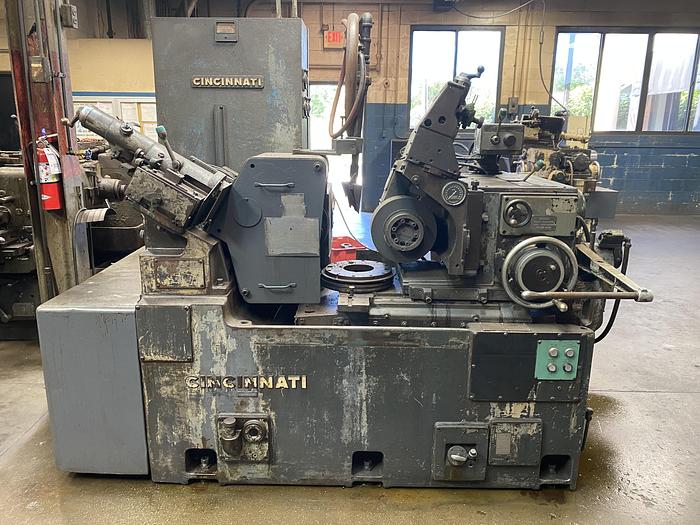

2 CINCINNATI-MILACRON "LO" CENTERLESS GRINDER

#2 CINCINNATI-MILACRON CENTERLESS GRINDER

Serial No 2M2HCD5H-26, Model 2, Ltr LO,

EQUIPPED WITH:

Hand Regulating Wheel Slide Infeed Unit

Hydraulic Grinding Wheel Profile Diamond Truing

Hydraulic Regulating Wheel Profile Diamond Truing

Automatic Grinding Wheel Balancing

Bijur One-Shot Lubrication System

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:

Diameter Capacity, Nominal .......... .06" to 3"

Diameter Capacity, Maximum .......... 4.75"

Grinding Wheel Diameter, Maximum .......... 20"

Grinding Wheel Width, Maximum .......... 8"

Grinding Wheel Hole Diameter .......... 12"

Regulating Wheel Diameter, Minimum .......... 9.5"

Regulating Wheel Diameter, Maximum .......... 12"

Regulating Wheel Width, Maximum .......... 8"

Regulating Wheel Hole Diameter .......... 5"

Regulating Wheel Speeds, Low Range .......... 11 to 60 RPM

Regulating Wheel Speeds, High Range .......... 54 to 320 RPM

Grinding Wheel Motor, Horsepower .......... 20 HP

Overall Dimensions, W x D .......... 7'7" x 5'9"

Weight, Approximately .......... 9300 LBS

F.O.B. OUR WAREHOUSE
