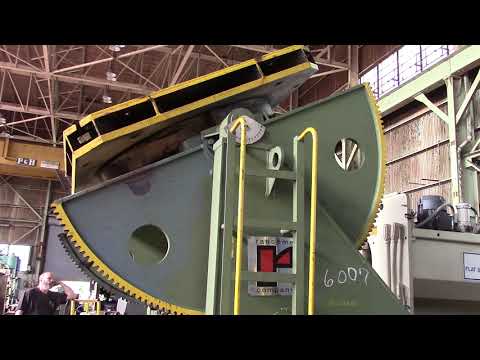

35,100/60,000 LB RANSOME “600P” EXTRA HEAVY-DUTY VARIABLE SPEED WELDING POSITIONER w/72” X 72” TABLE - PENDANT CONTROL

35,100/60,000 LB RANSOME EXTRA HEAVY-DUTY WELDING POSITIONER SERIAL NO 6516814, MODEL 600P EQUIPPED WITH: HAND HELD PENDANT CONTROL VARIABLE SPEED POWER ROTATION FORWARD & REVERSE TILTING (-45/+90 DEGREE)

CATALOG SPECIFICATIONS:

Table Dimensions, L x W   72" x 72"

Table Weight At 12" C.G. 16" Eccentricity   35,100 LBS

Table Rotation, Degrees   360-DEGREES

Table Tilt, Forward   90-DEGREES

Table Tilt, Reverse   45-DEGREES

Table Speed Variable, Range   .008 to .32 RPM

Rotation Motor, Horsepower   7.5 HP/1760 RPM

Electrical System   230-460/3/60

Overall Dimensions, L-R x F-B   126" x 120"

Overall Height, Table Flat   120" NOTE: THIS 600P WELDING POSITIONER IS NORMALLY RATED FOR 60000 LB CAPACITY HOWEVER THIS MACHINE WAS SPECIALLY DESIGNED FOR THE GOVERNMENT WITH EXTRA HEIGHT AND IS CURRENTLY RATED FOR 35,100 LB CAPACITY @12" C.G. AND 16" ECCENTRICITY. THE CATALOG RATING USUALLY STARTS AT 12" ECCENTRICITY. MACHINE APPEARS TO BE IN VERY GOOD CONDITION. PRICE: F.O.B. OUR WAREHOUSE
