150 TON REACT TOOL & MOLD (RTC) DUAL-CYLINDER HYDRAULIC TRAVELING-TABLE DIE SPOTTING PRESS
Sold
150 TON REACT TOOL & MOLD (RTC) DUAL-CYLINDER HYDRAULIC TRAVELING-TABLE DIE SPOTTING PRESS
$19,500 (USD)
Description

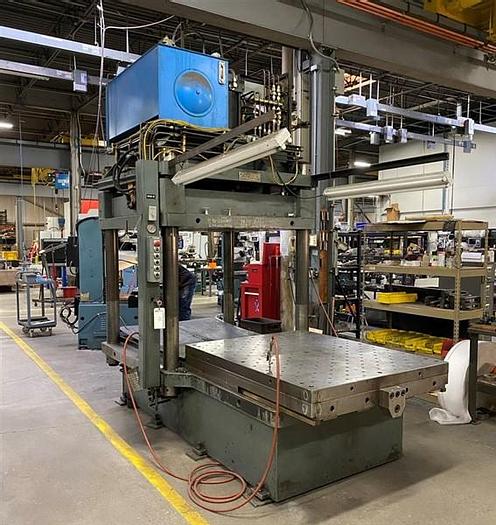

150 TON REACT TOOL & MOLD (RTC) DUAL-CYLINDER HYDRAULIC TRAVELING-TABLE DIE SPOTTING PRESS New 1992, EQUIPPED WITH: PUSH BUTTON CONTROLS LOWER PLATEN SLIDING BED W/(3") SPACER FARVER GAUGING (BAR & PSI) 25 HP EBERLE HYDRAULIC MOTOR W/REXROTH VALVE FLOOR STANDING DESIGN PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Year | 1992 |
| Condition | Used |
| Stock Number | 29333 |
| Tonnage capacity | 150 TON |
| Stroke length, maximum | 27.85" |
| Daylight open, w/spacer | 36.7" |
| Daylight open, w/o spacer | 39.75" |
| Daylight closed, w/spacer | 8.90" |
| Bed area, l-r x f-b | 48" X 60" |
| Overall height | 10'6" |
| Horsepower | 25 HP/1760 RPM |
| Electrical requirements | 208-230/460/3/60 |
