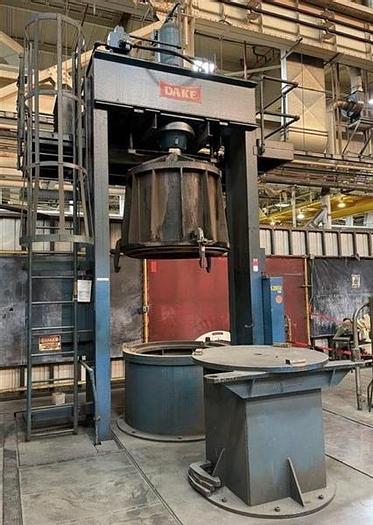

200 TON DAKE "H"-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS

200 TON DAKE "H"-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS SERIAL NO 190373, MODEL 19-525, EQUIPPED WITH: PUSHBUTTONS & CONTROLS CONSISTING OF: FAST DOWN, SLOW DOWN, FAST RAISE, FRAME FORWARD, SLOW RAISE, LOCK FRAME, FRAME REVERSE, UNLOCK FRAME, FAST DOWN, SLOW DOWN, START, STOP. HYDRAULIC GAUGE BELL HOUSING & WORK SUPPORT TABLE

CATALOG SPECIFICATIONS:

Tonnage Capacity 200 TON

Stroke Length, Maximum     40"

Daylight to Ram, Maximum     130"

Daylight to Ram, Minimum     90"

Distance Between Housings     78"

Ram Speed, Pressing     8 IPM

Ram Speed, Advance     115 IPM

Ram Speed, Return     300 IPM

Ram Speed, Breakaway     20 IPM

Head Travel, Speed     28 FPM

Motor Horsepower     25 HP

Electrical System     460/3/60

Frame Traverse        150"

CONDITION: APPEARS TO BE IN GOOD CONDITION AS TAKEN FROM SERVICE. PRICE: F.O.B. OUR WAREHOUSE
