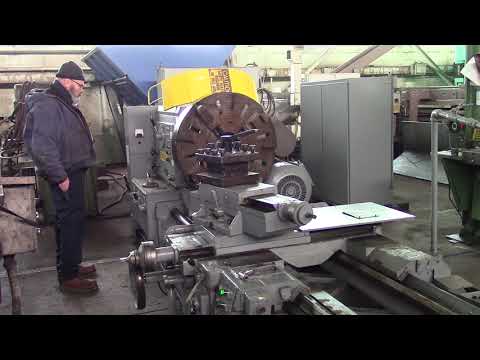

40"/49.25" X 170" POREBA “TR100BI/8M” GAP-TYPE ENGINE LATHE w/DRILLING & MANUAL TAILSTOCKS - INCH/METRIC THREADING - POWER RAPID TRAVERSE - 31” 4-JAW CHUCK

40"/49.25" X 170" POREBA GAP-TYPE ENGINE LATHE W/MANUAL & DRILLING TYPE TAILSTOCK SERIAL NO. 1191-317, MODEL TR100BI/8M, EQUIPPED WITH: INCH-METRIC THREADING CAPABILITIES POWER RAPID TRAVERSE (LONG & CROSS) 31" 4-JAW CHUCK - 4-WAY TOOL POST HARDENED & GROUND BED WAYS (2) TAILSTOCKS - (1) 40" DRILLING TAILSTOCK & (1) MANUALLY OPERATED TAILSTOCK (2) STEADY RESTS - AMMETER (2) SPEED MOTOR (39/53 HP - 29/40 KW)

CATALOG SPECIFICATIONS:

Hole Thru Spindle 4.7"

Swing Over Bed Ways, Rated 39.37"

Swing thru Gap 49.25"

Distance Between Centers 170"

Swing Over Carriage 26.755"

Workpiece Weight Capacity w/(2) Steadys   24200 LBS

Spindle Nose  ASA A-1-11

(21) Spindle Speeds, Range  5 to 500 RPM

Longitudinal Feeds, Range   .0017 to .125 IPR

Cross Feeds, Range   .0008 to .063 IPR

(62) Metric Treads, Range   1 to 120 MM

(52) Inch Threads, Range   1/4 to 30 IPR

(45) Modular Threads, Range   .25 to 30 MM

(70) DP Threads, Range   1/2 to 60 TPI

Tailstock Spindle Taper   6 MT

2-Speed Motor   29/40 KW

Overall Dimensions, L x W 21' x 7'6"

Overall Height 6'4"

Weight, Approximately 23000 LBS PRICE: F.O.B. OUR WAREHOUSE
