13" GLEASON "13" ANGULAR BEVEL GEAR TESTER (COMPONENTS & PARTS)

NO. 13 GLEASON AUGULAR BEVEL GEAR TESTER

SERIAL# 17709

Suitable for the running testing/checking for smoothness

and quietness of operation, and inspection of actual tooth contact,

under load, (tooth bearing), on a wide variety of straight and

curved tooth bevel gears of any shaft angle, including hypoid, spur,

helical, internal gears, as well as worm and worm-wheel combinations

up to 13” maximum diameter.

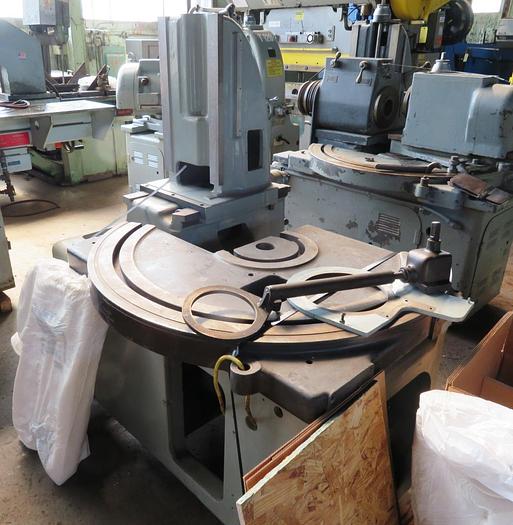

The machine remains completely dismantled, as it was being rebuilt by “in-house” technicians at the ARROW GEAR COMPANY, Downers Grove, IL.  The machine has been 80% scraped-in, complete with all parts, but not yet re-assembled.

EQUIPMENT / FEATURES:

4‑speed Main drive motor w/drum switch speed selector

  3 HP, 3phase, 60 cycles, 220 volts

2-step Drive pulley

Forward/reverse direction spindle rotation via push button

Manual spindle braking, with load meter

Full complement of electrics (motors/controls)

Hand-wheels, guards, covers

Operator's manual, parts list, wiring diagram

PRINCIPAL SPECIFICATIONS:

Maximum diameter gear (nominal) ................................ 13"  (330.2mm)

Range of angles ............................................................. 0 to 180 degrees

Range of offset pinion spindle:  Above center ................ 8"   (203.2mm)

Below center ................................................................. 2"  (50.8mm)

Max. center distance, (spurs, helicals and herringbones) 8"  (203.2mm)

Drive spindle bore 39-Taper (diameter large end) .......... 3-29/32"  (99.2mm)

Drive spindle bore, (taper per ft) ...............................….. 39/64"  (15.478mm)

Brake spindle bore, 14-Taper (diameter large end) ....... 2 -19/64"  (58.34mm)

Brake spindle bore, (taper per ft) ..............................…..1/2"  (12.7mm)

Floor space .................................................................… 60.5" x 80.5"  (1537x2045mm)

Approx. machine net weight ........................................... 5,200 lbs  (2364 kGs)

PRICE: F.O.B. OUR WAREHOUSE ...... AS IS ...........
