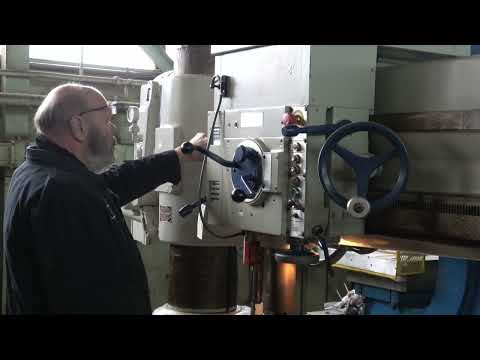

4'11" GIDDINGS & LEWIS-BICKFORD “952 CHIPMASTER” RADIAL DRILL w/L-BASE - UNIVERSAL BOX TABLE - #5 MT

4'11" GIDDINGS & LEWIS-BICKFORD “CHIPMASTER” RADIAL DRILL SERIAL NO 952-00150-69, MODEL 952 EQUIPPED WITH: TAPPING CAPABILITIES UNIVERSAL T-SLOTTED BOX TABLE L-TYPE BASE - POWER ARM ELEVATION POWER CLAMPING TO (ARM, COLUMN & HEAD) POWER RAPID TRAVERSE TO HEAD

CATALOG SPECIFICATIONS:

Arm Length 4'

Column Diameter 11"

Vertical Arm Travel on Column 26"

Vertical Spindle Travel in Head 14"

Spindle-Radius, Maximum 57"

Spindle-Radius, Minimum   20"

Spindle-Nose to Base, Minimum 14"

Spindle-Nose to Base, Maximum 54"

Column-Face to Spindle, Minimum 11"

Drills to Center of Circle on Base 96"

Spindle Taper #5 MT

(12) Spindle Speeds, Range 40 to 1600 RPM

(9) Spindle Feeds, Range .002 to .040 IPR

Main Motor, Horsepower 10 HP PRICE: F.O.B. OUR WAREHOUSE
