15" CLAUSING THREE-SPINDLE MULTIPLE SPINDLE DRILL
Description

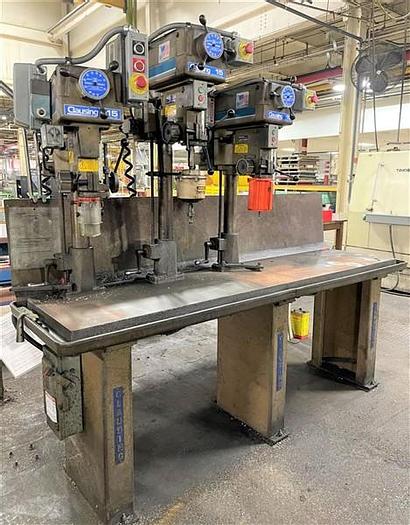

15" CLAUSING THREE-SPINDLE MULTIPLE SPINDLE DRILL SERIAL NO 534812, 534813, 534814, MODEL 1687, EQUIPPED WITH: MANUAL DOWN-FEED CLAUSING WORK BENCH PLEASE NOTE: THE PROCUNIER TAPPING HEAD IN THE PHOTO IS NOT INCLUDED WITH THIS DRILL. (SEE OUR STOCK NUMBER 29432) PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | 1687.0 |
| Condition | Used |
| Serial Number | 534812, 534813, 534814 |
| Stock Number | 29396 |
| Drilling capacity, hand feed | 0.625" |
| Spindle travel, vertical | 4.75" |
| Swing to center of circle, maximum | 15" |
| Throat depth spindle to column | 7.5" |
| Table working surface, w x l | 20" X 90" |
| Table overall dimensions, w x l | 25" X 95" |
| Column diameter | 3" |
| Spindle taper | #2 MT |
| Spindle speeds range, infinitely variable | 400 TO 4000 RPM |
| Motor horsepower | 3/4 HP |
| Weight approximately | 1330 LBS |
