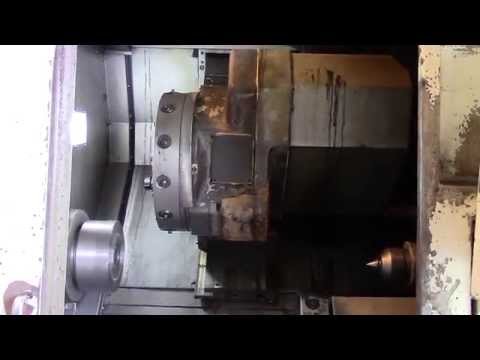

21” X 24” OKUMA "LU-15M IMPACT" 5-AXIS TWIN-TURRET CNC TURNING CENTER w/LIVE MILLING

#LU-15M OKUMA "IMPACT" 5-AXIS TWIN-TURRET CNC TURNING CENTER W/LIVE MILLING NEW 1997, SERIAL NO. 0152, MODEL LU-15M EQUIPPED WITH: 8" 3-JAW CHUCK OKUMA OSP7000L CNC CONTROL LIVE MILLING CAPABILITIES 12 POSITION UPPER & 8 POSITION LOWER TURRET (DOES NOT HAVE THE CHIP CONVEYOR) - COOLANT TANK Tailstock

CATALOGUE SPECIFICATIONS:

Swing Over Bed 20.87"

Swing Over Carriage  14.96"

Swing Over Cross Slide 12.99"

Maximum Turning Diameter 10.62"

Maximum Turning Length 23.62"

X-Axis Travel (Upper/Lower) 10.24"/5.51"

Z-Axis Travel (Upper/Lower) 25.20"/24.21"

Headstock & Main Spdl Nose JIS-A2-8

Spindle Bore Diameter 3.15"

Spindle Speed Range to 4500 RPM

X-Axis Rapid Traverse Speed 590 IPM

Z-Axis Rapid Traverse Speed 787 IPM

X-Axis Cut Fdrates (IPR) 0.0001"-40000

Z-Axis Cut Fdrates (IPR) 0.0001"-40000

Motor, Horsepower  29.5 HP

Floor Space Req. 156" x 83" x 76"

Weight Approximately 12000 LBS PRICE: F.O.B. OUR WAREHOUSE
