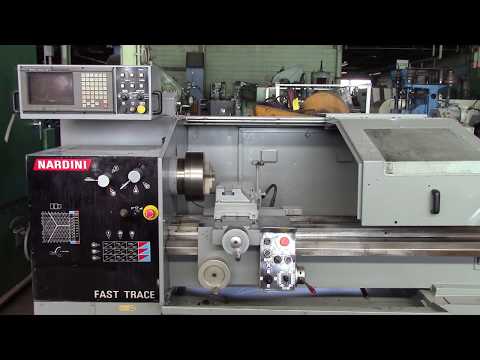

17.5" X 40" NARDINI "FAST TRACE" CNC LATHE w/GE FANUC 20T TEACH CONTROL & 10” 3-JAW CHUCK

17.5" X 40" NARDINI "FAST TRACE" CNC LATHE SERIAL NO D4JEO-105, TYPE FAST TRACE EQUIPPED WITH: GE/FANUC 20T CNC CONTROL W/TEACH MODE 10" 3-JAW CHUCK W/JAWS Tailstock COOLANT PUMP

CATALOG SPECIFICATIONS:

Spindle Bore Diameter 2"

Swing Over Bed, Maximum 17.5"

Distance Between Centers, Maximum 40"

Swing Over Cross Slide, Maximum 11.75"

Cross Slide Travel, X-Axis   11.02"

Z-Axis Travel   9.84

Spindle Speeds, Range 37.5 to 3000 RPM

Spindle Motor, Horsepower 8 HP

Overall Dimensions, L x W   104" x 56"

Overall Height   68"

Weight, Approximately 5000 LBS PRICE: F.O.B. OUR WAREHOUSE
